Commercial Solar Roofing System by Voltaic
TYCOON
BY VOLTAIC
Turn Every Roof Into An Asset.
21.6%+
CELL EFFICIENCY
YEAR ROOF WARRANTY
30
25
YEAR POWER WARRANTY
MAX POWER PER MODULE
55W
WAREHOUSE
MANUFACTURING
AGRICULTURE
RETAIL
MUNICIPAL
THE SYSTEM
ROOF. POWER. ONE SYSTEM.
TYCOON is a roof-integrated solar solution engineered for R-Panel and insulated metal panel roofing systems.
Unlike traditional rack-mounted solar, TYCOON suspends modules above the roof surface using a proprietary Top Hat / Bottom Hat mounting system - prompting passive airflow, cooler operating temperatures, and superior energy output.
ELEVATED VENTILATED DESIGN
Proprietary brackets suspend modules above the roof surface to promote passive airflow and reduce operating temperatures - increasing power output across all conditions.
BUILT FOR COMMERCIAL SCALE
Engineered for warehouses, manufacturing facilities, agricultural buildings, retail centers, and municipal facilities. Every large roof is a revenue opportunity.
INTEGRATED APPEARANCE
Clean architectural profile, no clutter of traditional racking systems. TYCOON maintains the visual integrity of the underlying metal roof while generating commercial- scale power.
MONOCHRYSTALLINE TECHNOLOGY
Premium monocrystalline cells with >21.6% efficiency deliver greater energy density and long-term performance than thin-film alternatives.
LONG-TERM ASSET VALUE
30- year roof warranty. 25- year power warranty. 10- year product warranty. TYCOON is underwritten to perform - and to hold its value on your balance sheet.
HOW IT WORKS
THE TOP HAT / BOTTOM HAT SYSTEM
The single biggest differentiator between TYCOON and commodity metal-roof solar products is the elevated air gap. Proprietary Top Hat brackets elevate the modules; Bottom Hat channels lock into the R-Panel rib. Air flows freely beneath the module at all times.
This means the roof retains its full serviceability. A contractor can inspect beneath the system. The membrane stays accessible. And the modules run cooler- measurably, consistently, across decades of operation.
"The first thing a commercial roofing contractor should see is exactly how the system is suspended above the roof surface."

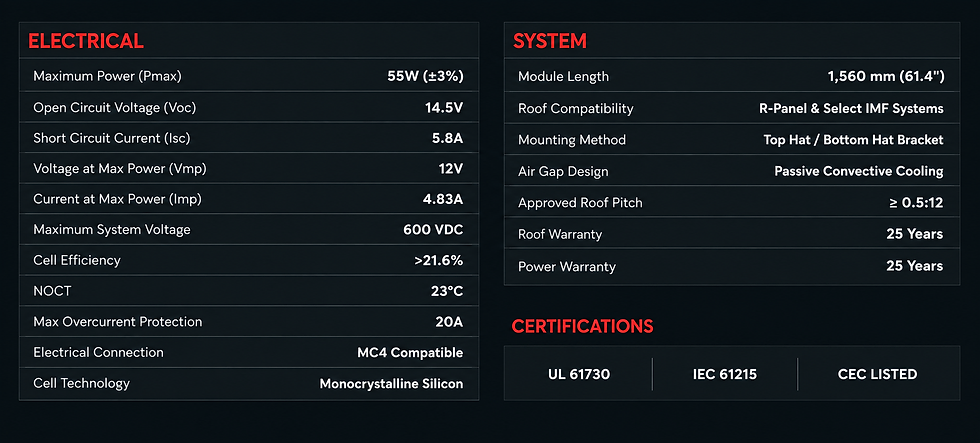

SPECIFICATIONS
ENGINEERED TO PERFORM
GET IN TOUCH
READY TO PUT YOUR ROOF TO WORK?
Our commercial team works directly with building owners, developers, contractors, and facility managers. Tell us about your project.
